Side Console Boat Cover
Before choosing your Side Console Boat Cover please refer to the measuring information and diagrams to help determine the correct size cover based on your boats dimensions and the covers fabric lengths.
When you make a size selection the image will change and show you fabric overall lengths for the size you have selected
Click here for Detailed information of how to Measure your Side Console Boat
- Designed for Travel - Trailering & Storage
- Side Console Fishing Boats - with sizes ranging from 4.1m to 5.7m
- Available in Grey Canvas
- Cover Includes Tie Down Straps with Side Release Buckles
- Storage Bag Included
- Can be used at Highway speeds when properly tied down
- Great Value Cover with Semi Custom Fit Pattern / Shaping
- Almost 100% Waterproof with PU Coating
- Stock Cover item
- Fabric Name - Atlas Canvas
- Warranty - 1 Year Warranty
Description
The Semi Custom Fit Boat Covers offer you a Trailerable Boat Cover that is ready made, Designed with specific shaping pattern design for side console boats
The fabric is a heavy weight with a high level of water repellency with PU Coating on the Fabric Underside
The cover is designed for Trailering at highway speeds but must be properly installed
All Semi Custom Fit Boat Covers are supplied with Tie Down Straps but we offer a number of Boat Cover accessories including Specialist Cleaning solutions recommended for use with this Semi Custom Boat Cover
When choosing this cover make sure that the Overall Length of your Boat and Beam are closely matched to this boat Cover Specifications

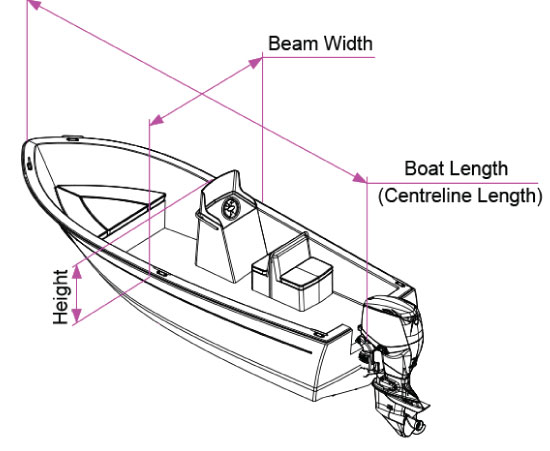

STEP 1: Measure Boat Length
Measure in a straight line the centreline distance of your boat from Bow to Stern.
STEP 2: Measure Beam Width
Measure in a straight line the distance across the beam (widest point of your boat)
NOTE: It is recommended that both measurement instructions are used to help you choose
the correct cover size. The side console covers are designed to accomodate bowrails up to 150mm and the side console height up to 70mm from the gunwhale.
STEP 1: Measure Fabric Width
Using the ‘overall cover fabric width’ measurement of your chosen cover, measure across the widest point of your boat, over the top of any boat fittings
e.g. cabin, windscreens etc.to the point on the hull where the cover’s hem will finish.
STEP 1: Measure Fabric Length
Using the ‘overall cover fabric length’ measurement of your chosen cover, measure along the length of your boat, over the top of any boat fittings e.g. cabin, windscreens etc. to the point on the hull where the cover’s hem will finish
If you have a front bow mount plate add the width of the mount plate to the overall fabric length when measuring the up and over fabric length, you may need to go up a size with a bow mounted plate
| BOAT SIZE | FABRIC LENGTH (L) |
FABRIC WIDTH (W) |
|---|---|---|
| Boat length 4.1m – 4.3m | 4960mm | 2895mm |
| Boat length 4.3m – 4.5m | 5110mm | 2940mm |
| Boat length 4.5m – 4.7m | 5397mm | 2995mm |
| Boat length 4.7m – 5.0m | 5697mm | 3195mm |
| Boat length 5.0m – 5.3m | 5997mm | 3445mm |
| Boat length 5.3m – 5.7m | 6297mm | 3445mm |
Semi Custom Fit Boat Cover Features
- 25mm webbing enclosed in hem which can be adjusted with twin metal camlock buckles
- Double thickness rear section adds strength and protection
- Rear airvent allows airflow reducing moisture build up and balooning when being towed
- Reinforced polyester webbing loops sewn into the hem for easy fitting of Tie Down straps
- Reinforced across the Bow Area
- Motor covers are not built into the cover and you need to buy the Outboard Motor Cover seperately
- Tailored pleated sections across deck structures gives better fit
- Top stitched pleated rear section adds strength and protection
- Marine Grade Fabric designed for Australian Weather and UV Conditions
- Manufactured with Premium Woven Atlas Marine Canvas Fabric 280gsm 8.2oz/yd
- 1 Year Warranty
The life expectancy of this fabric under normal Australian conditions is 7 years
How can I be certain of choosing the correct size cover for my boat?
It is important to properly check your boat length details before ordering, in the semi custom fit range of Ocean South Boat Covers we provide the information for the size boat they are designed to fit and the actual dimensions of the material from one end to the other.
When checking your boat length please dont assume that a model number determines the length of the boat, for example a model number might say 430 in it which could make you think the boat is 430cm long but actually when checking the specs of the boat you may find the boat is 445cm long, this make a difference between which size cover is going to fit your boat.
Also we strongly recommend measuring up and over across the centre and the widest part of the boat to check that the maximum fabric lengths do suit your boat you may find after measuring that you need to change your originally expected cover size.
If you are not sure then please phone or email for assistance we are here to help you get the correct fitting cover.
What Material are Ocean South Boat Covers Made from?
Ocean South Boat Covers are made from a heavy duty Marine Canvas called Cyclone Premium Woven Dope Dyed Polyester.
Do the Boat Cover Fabrics breath?
The ready made boat covers have a rear air vent which allows airflow which reduces moisture build up inside the cover.
Will the cover go over my Outboard Motor?
No, you need to purchase a seperate outboard motor cover to go with the boat cover. Coverworld offer a comprehensive range of outboard motor covers. Our USA Manufactured Carver Covers do include an attached rear motor pocket for all boats that have an outboard engine.
I have a Bimini Top can I still use my Boat cover?
Yes : The Bimini must be folded flat on the boat and the cover can go over the top of it.
How do I care for my Boat Cover?
To keep your boat cover looking great much longer make sure to support your cover using the Boat Cover support poles. Supporting your cover properly will prevent water from pooling on the cover.
When trailering or storing yor boat with the cover on it use the Tie Down Kit to prevent damage to the cover.
Never wash the boat cover in a machine, you can use a soft bristle brush for cleaning, allow the cover to dry completly before folding and storing it.
We offer specialist cleaning products for boat covers which we reccomend using for the best quality cleanign and care results.
Never use any chemicals or cleaning solutions on your Boat Covers, this will void your warranty and can significantly reduce the lifespan of the fabric.
We offer a boat cover support system that can be used to lift the cover to assist with water run off and prevent water pooling on the boat cover material. Water pooling on fabric over a long period can cause fabric damage so its always best to use the support system if its suitable for your specific boat model.
What happens if I order the wrong Semi Custom Fit Boat Cover?
If you are not sure as to whether the Semi Custom Fit Boat Cover is correct for your Boat then please contact us. If you need to return the cover to us we will charge a standard restocking fee detailed in our terms and wont be able to refund any freight charges you have originally paid.
Our friendly sales team can help you select the correct cover for your boat if you are not sure which one to select.
Important Information about installing covers onto new Boats
CAUTION: Compounds used in new boats can release gasses that can cause dyes in boat covers to transfer to the boat and cause staining to boat or fittings. It is recommended not to use a boat cover on a new boat in the first four weeks to allow any gases to dissipate.
Fitting covers and Protecting sharp areas on the boat
Before fitting your cover make sure all sharp points or protruding equipment/fittings are well covered with a cloth or sponge to avoid damaging your cover. Damage caused by protroduding or sharp exterior fittings or angles is not covered by the manufacturers warranty.
Information about Travelling Long Distances with a Cover Installed
Note: If you are trailering your boat we recommend that on long journeys that you routinely check that an even tension is maintained across the cover. This will help prolong the life of your cover. Damage caused by trailering is not covered by warranty it is essential that the cover is fully and tightly secured before undertaking towing a trailer with a boat and cover installed.
Please contact our friendly sales team who are available to help with any questions you have about a boat cover.
Please read the fitting instructions for the Boat Cover prior to Purchase
Please download the Boat Cover Fitting Instructions
Please consider if the size of your Boat and the Cover size will be manageable for you, the larger the boat the heavier and larger the cover size. It may be necessary for two people to put on some covers
This product is backed by a One (1) Year Warranty. To read our full Warranty details, please click here.
